Mini Fixed Speed Air Conditioner Split Auto Restart LUAN 50Hz 9K

Product Categories
guangzhou ants technology co.,ltd
Contact Now

Mini Fixed Speed Air Conditioner Split Auto Restart LUAN 50Hz 9K

  • 1
  • 2
  • 3

Brand Name : DELTA

Model Number : Fixed Speed Air Conditioner

Certification : ISO9001

Place of Origin : China

MOQ : 50 sets

Price : negotiate

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 sets/month

Delivery Time : 20-25days

Packaging Details : carton box

Power Source : Electric

Warranty : 1 Year

Power supply (V/ph/Hz) : 220V/50Hz/1Ph

Use : Room

Remote Control : Yes

Contact Now

ON-OFF Systems LUAN 50Hz 9K Designer Friendly New Mini Split air Conditioner


Mini Split ON-OFF Systems LUAN 50Hz 9K

The Product Name includes the following features:
INDOOR UNIT 9K(220/1/50 ):

1. Wireless LCD Remote Control.
2. Auto Fan Settings.
3. Auto Restart.
4. Timer.
5. Sleep Mode.
6. Cool / Auto Modes.
7. Auto Swing (Horizonal airflow).
8. Turbo Cooling Function.
9. LED Display.
10. Cleanable Cartridge Filters.
11. Easy Indoor-to-Outdoor Unit Connections.

OUTDOOR UNIT 9K( 220/1/50 ):

1. Rotary Compressor.
2. Superquiet Operation.
4. High Efficiency Cooling.
5. Durable cabinet with protective coating.

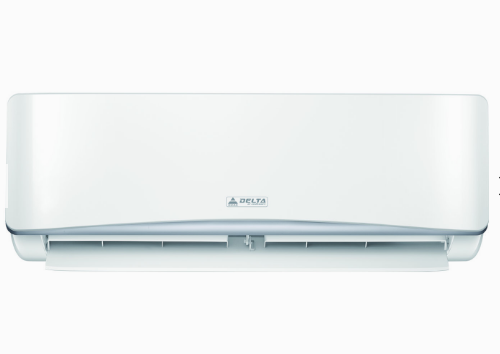

INDOOR UNIT
INDOOR UNIT MODEL NO. 27WJ009C24
Cooling Capacity (Btuh) 9000
Cooling Input (W) 703
Cooling Rated Current (A) 3.05
Cooling EER (W/W) 3.75
Max. input consumption (W) 2075
Max. Current (A) 9.5
Compressor Capacity (W) 3095
Compressor Rated current(RLA) (A) 5.3
Compressor Input (W) 790
Compressor Thermal protector position NA
Power supply (V/ph/Hz) 220V/50Hz/1Ph
Compressor Refrigerant oil/oil charge(ml) RB74A F/370
Indoor fan motor Model ZKFP-20-8-6-7
Indoor fan motor Input (W) 50
Indoor fan motor Capacitor (uF) /
Indoor fan motor Speed(Hi/Mi/Lo)(r/min) 1150/850/700
Indoor coil Number of Rows 2
Tube pitch(a)x row pitch(b)(mm) 21x13.37
Fin Spacing(mm) 1.3
Tube outside dia.and type(mm) Inner groove tube
Number of circuits 2
Dimension (W*D*H)(mm) 722x187x290
Packing (W*D*H)(mm) 790x270x375

OUTDOOR UNIT
OUTDOOR UNIT MODEL NO. 37HJ009C24(3C)
Outdoor fan motor Model ZKFN-34-8-1-3
Outdoor fan motor Capacitor (uF) /
Outdoor fan motor Speed (r/min) 810/710/520
Outdoor coil Number of rows 1.0
Tube pitch(a)x row pitch(b) 21x22
Fin spacing 1.2
Fin type (code) Hydrophilic aluminum
Tube outside dia.and type Inner groove tube
Coil length x height x width 744x504x22
Number of circuits 2
Outdoor air flow (m3/h) 2000
Outdoor noise level (dB(A)) 55.5
Refrigerant type (kg) R32/0.7
Design pressur(MPa) 4.6/1.7
Outdoor unit Dimension(W*D*H)(mm) 770x300x555
Packing (W*D*H)(mm) 900x345x595
Net/Gross weight(kg) 26.8/29.1
Application area (Cooling Standard) (m2) 12~18
Qty’per 20’ /40’ /40'HQ 110/228/248

Mini Fixed Speed Air Conditioner Split Auto Restart LUAN 50Hz 9K
